Self-Circulating Air Handling Unit (SCAC) for Paint Booths

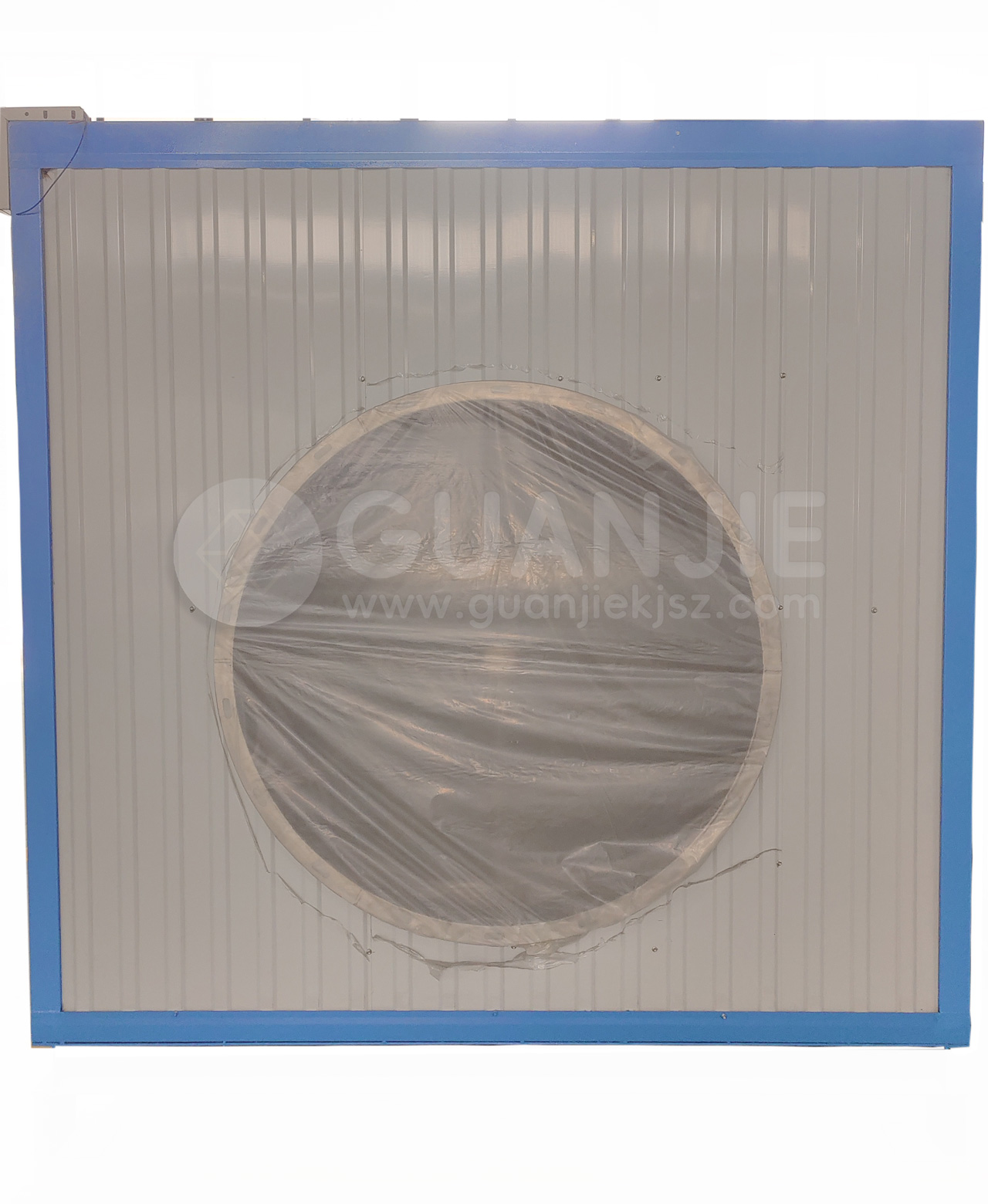

The GJ-YD-2025-SCAC01 is a heavy-duty, self-circulating air-handling cabinet engineered for automotive and general-industry paint lines. Installed directly beside the spray booth, it continuously recirculates 28 000 m³/h of conditioned air to maintain constant temperature, humidity and cleanliness—without drawing make-up air from outside. The closed-loop design cuts energy consumption by up to 35 % and guarantees ISO 8 / FED-STD-209E Class 100 000 background cleanliness inside the booth.

Typical Paint-Line Layout

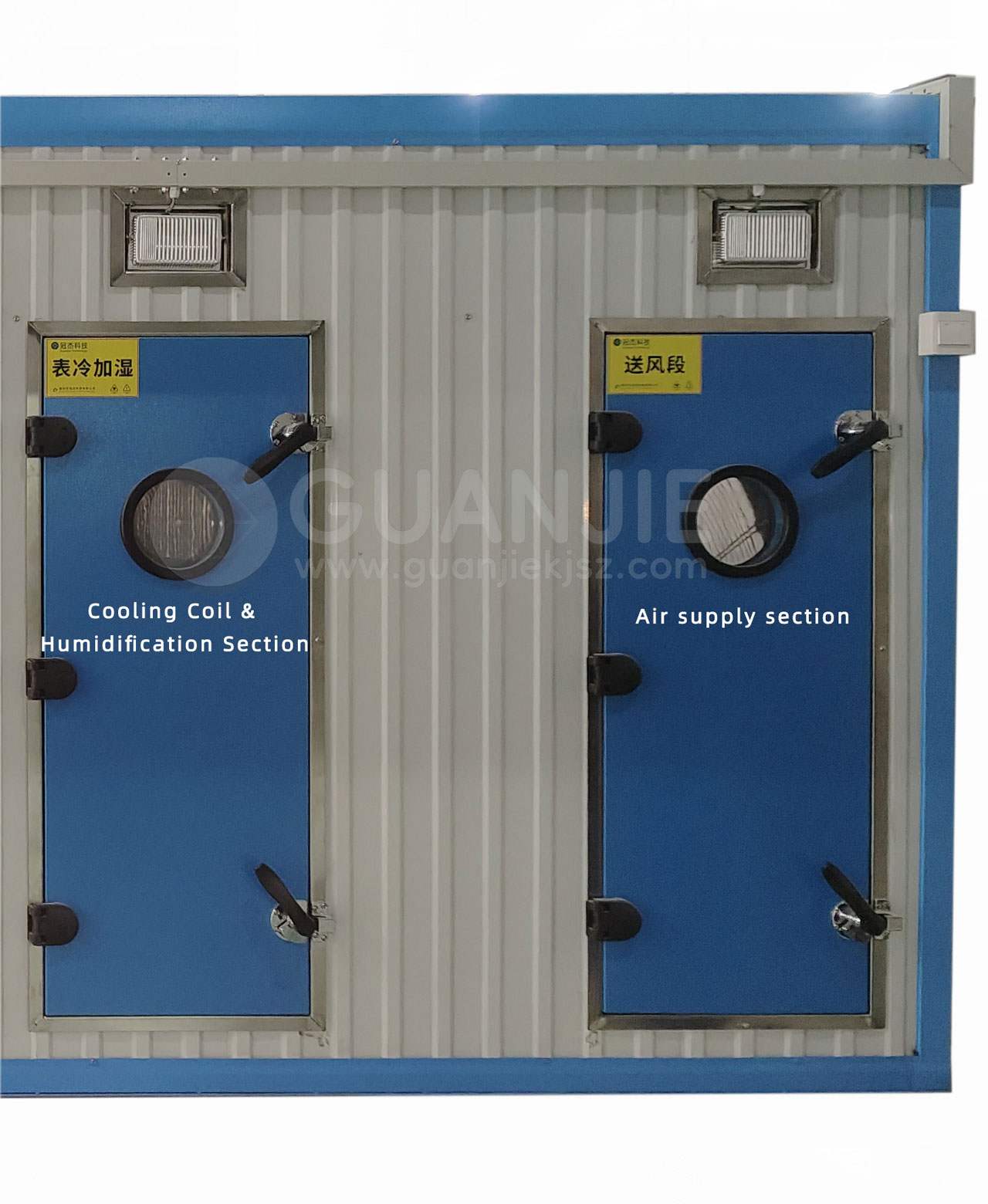

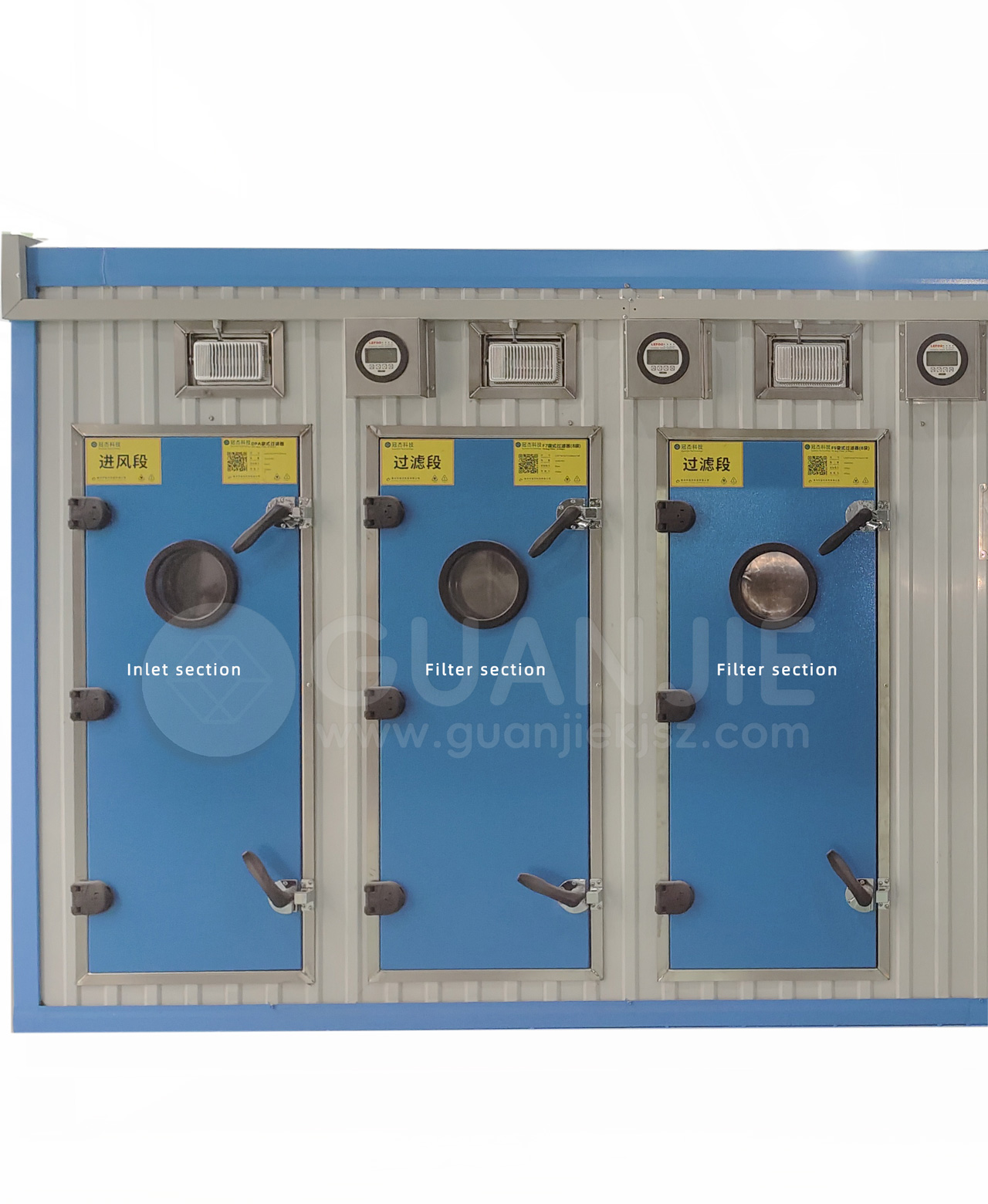

1.Spray booth → 2. Floor-level return duct → 3. SCAC return section → 4. Progressive filters → 5. Cooling / de-humidification → 6. Steam humidification → 7. Supply fan → 8. Ceiling plenum → 1. Spray booth (closed loop)
